1Wall

1Wall

0.9375mm to 1.875mm pixel pitches

Indoor Variable pitch

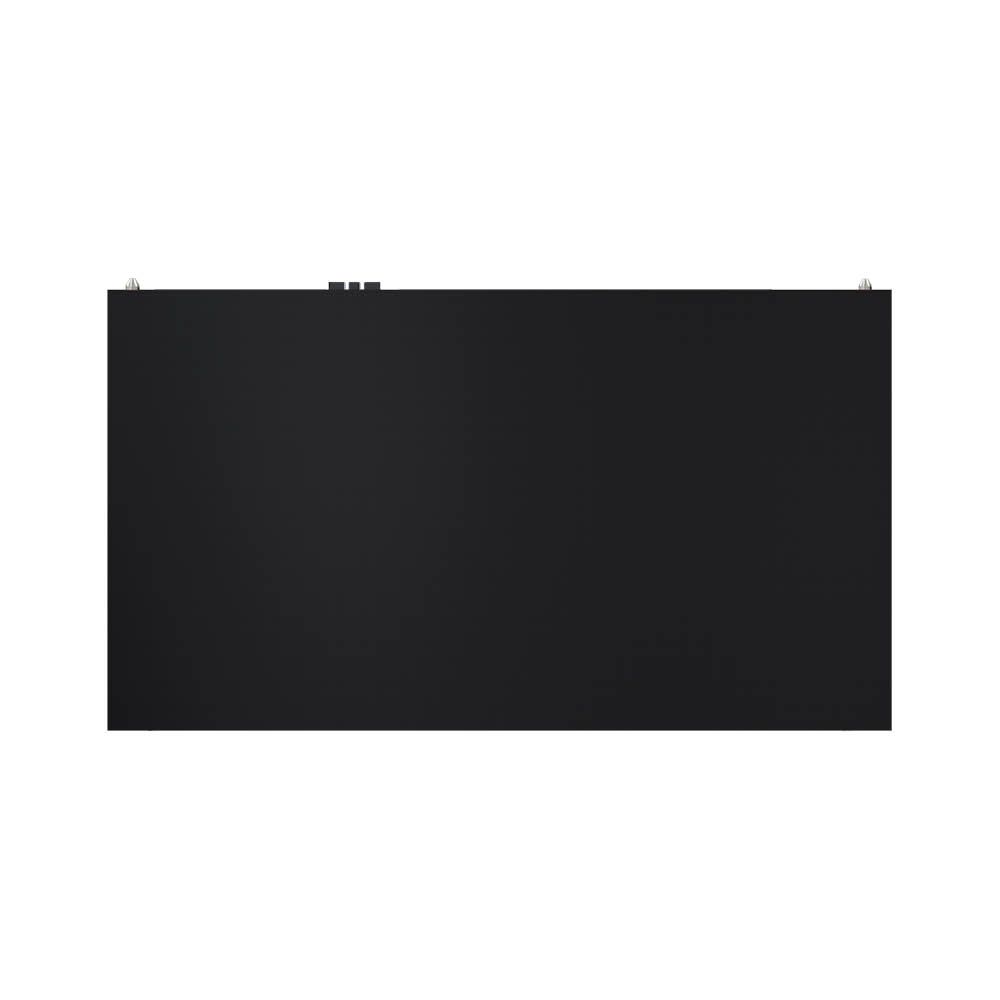

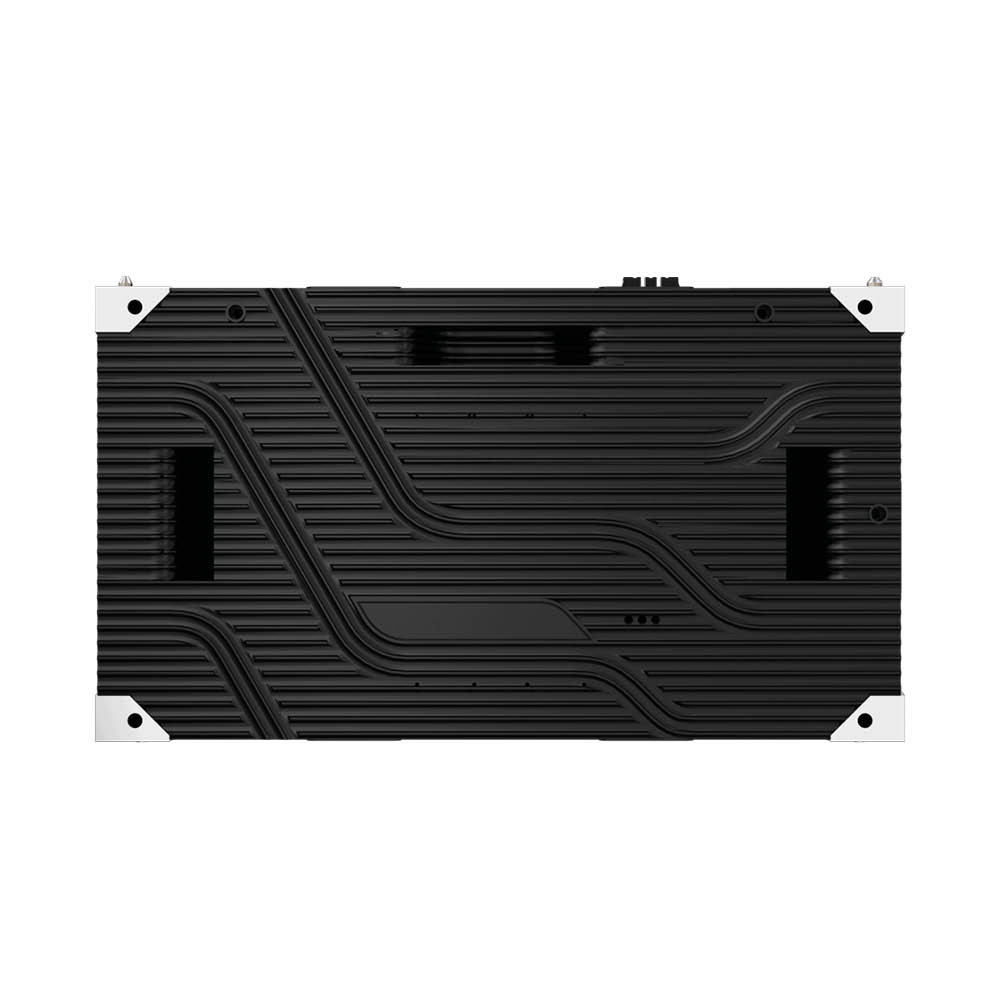

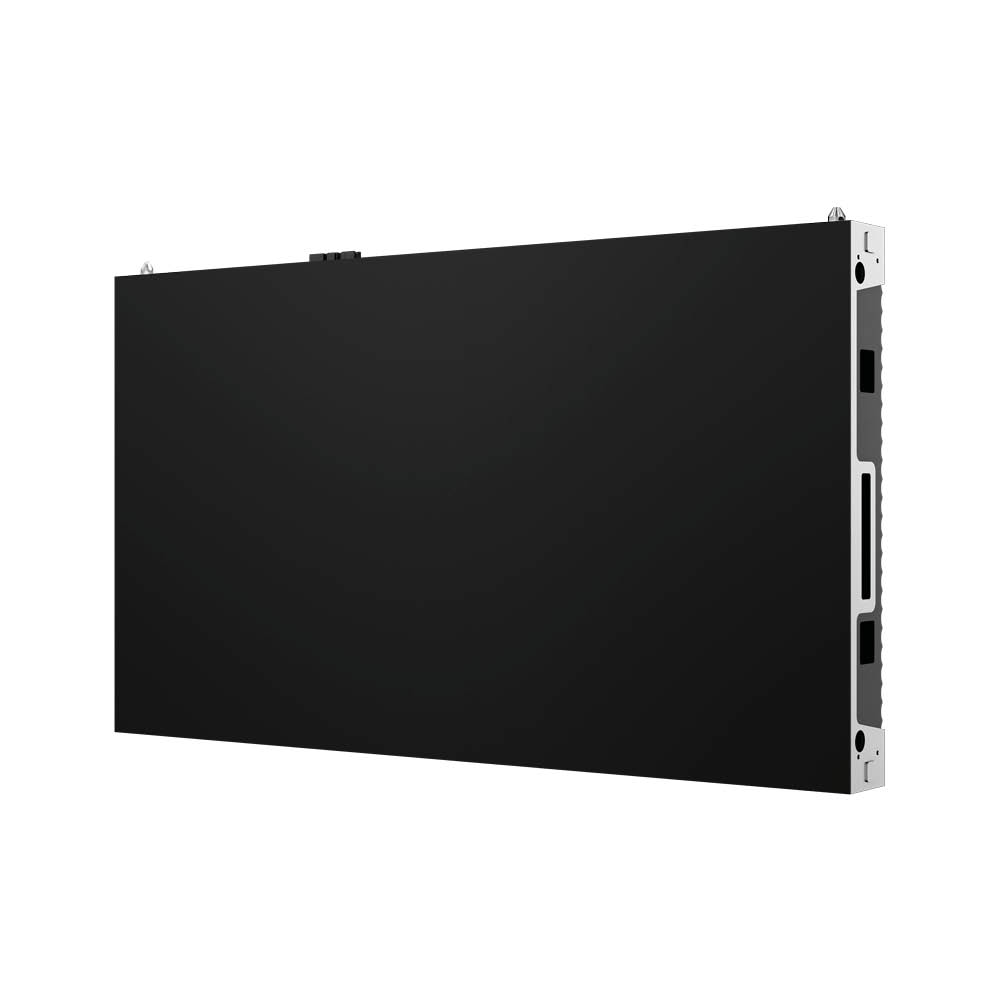

The Atenti Global 1Wall series is a cutting-edge, all-in-one LED display solution designed for seamless integration and impactful visual communication. Offering pixel pitches ranging from 0.93mm to 1.875mmand supporting UHD/4K resolutions, the 1Wall delivers stunningly clear and detailed imagery. This series is engineered for ease of use, combining display, power, and control elements into a single, elegant unit. With features like integrated audio and versatile mounting options, the 1Wall is the ideal solution for a wide range of indoor applications where high visual performance and simplified installation are paramount.

Key Features & Benefits:

  • All-in-One Convenience: Streamlined design integrates display, power, and control, ensuring a clean and easy installation process.
  • Ultra-High Definition: Experience exceptional clarity and detail with UHD/4K resolution options, captivating your audience with vibrant visuals.
  • Versatile Applications: Perfect for corporate boardrooms, educational lecture halls, retail digital signage, and broadcast set designs.
  • Integrated Audio & Mounting: Built-in audio capabilities and flexible mounting options (including self-standing and wall-mount) provide a complete and adaptable solution.
0.9375mm 1.25mm 1.56mm 1.875mm

Speak to us about this product

For more information about this product or any Atenti Global products please speak to us.

Module

  • Parameter
  • Specification
  • Pixel Pitch (mm)
  • 1.875mm
  • Packet type
  • 1010
  • LED Package Technology
  • SMD
  • PCB Layers
  • 4
  • Bonding
  • Copper
  • Pixel density (m2)
  • 409600
  • Module Resolution
  • 192 x 108
  • Module size (Wmm x Hmm)
  • 300 x 168.75

Cabinet

  • Parameter
  • Specification
  • Cabinet Materials
  • Aluminium
  • Cabinet Dimensions (mm)
  • 135
  • Cabinet Resolution
  • 1920 x 1080
  • Cabinet Weight (Kg)
  • 138
  • Service Access
  • Front
  • IP Rating
  • 31

Operation & certification

  • Parameter
  • Specification
  • Max power
  • 1200
  • AVE power
  • 400
  • Heat dissipation max
  • 3768
  • Heat dissipation AVE
  • 1256
  • Power supply
  • AC 86-264V
  • Operating temp/humidity
  • 0°C - + 50°C / 10%-90%RH
  • Storage temp/humidity
  • 0°C - + 60°C / 10%-90%RH
  • Lifetime (hours)
  • 100000
  • Certifications
  • CE, UL, BIS, ROHS, ISO9001:2015


  • Parameter
  • Specification
  • Brightness
  • 800
  • Contrast ratio
  • 8000:1
  • Bit depth
  • 14
  • Viewing angle
  • 160 x 160

Device drivers

  • Parameter
  • Specification
  • IC controller
  • ICN2069
  • Drive method
  • 1/30
  • Refresh rate
  • 3840
  • Supported frame rate
  • 50-60
