Outlook

Outlook

4mm to 16HB pixel pitches

Outdoor Variable pitch

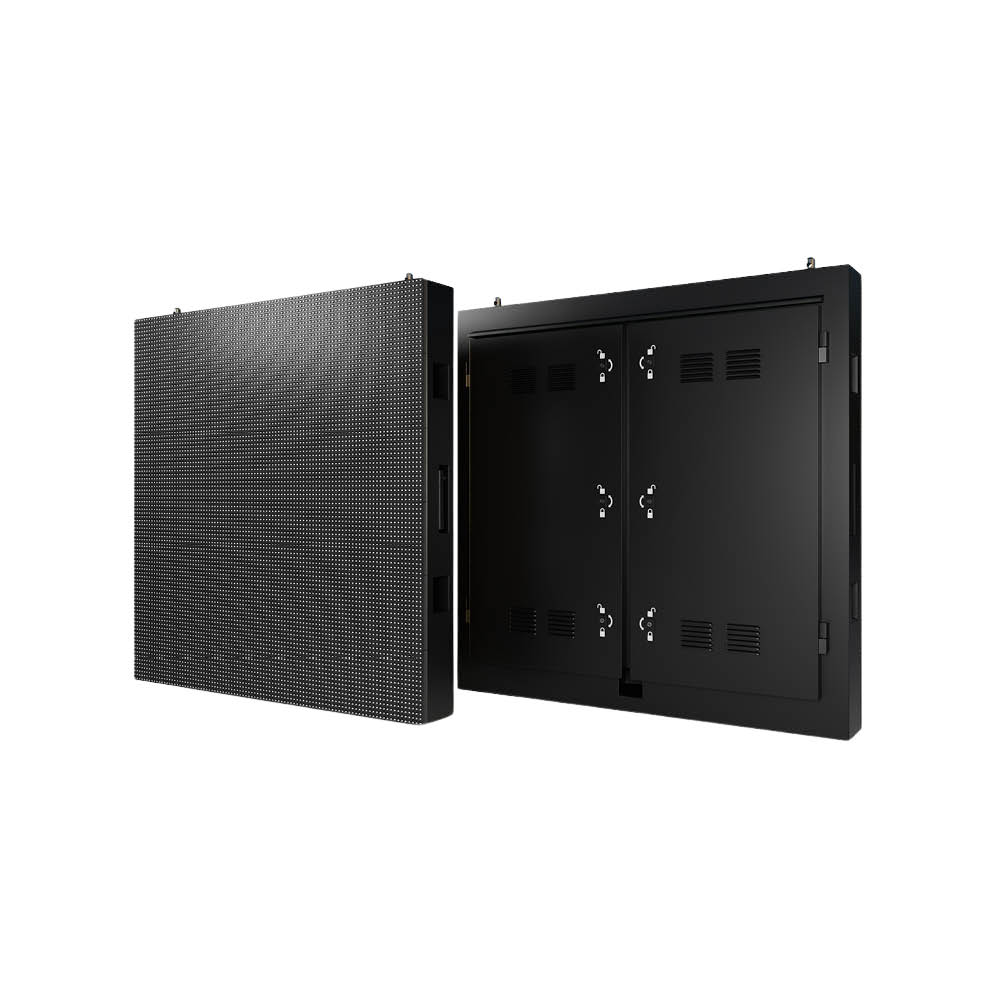

The Atenti Global Outlook Series is a robust outdoor LED display solution, engineered for large-scale installations requiring exceptional durability and visual performance. Featuring a 960mm x 960mm cabinet design, the Outlook Series is available in both steel and aluminum constructions to suit diverse environmental needs. This series delivers vibrant imagery with a range of pixel pitch options, making it ideal for applications such as billboards, stadium displays, and building facades. The Outlook Series prioritizes ease of installation and maintenance, while ensuring long-term reliability in demanding outdoor conditions.

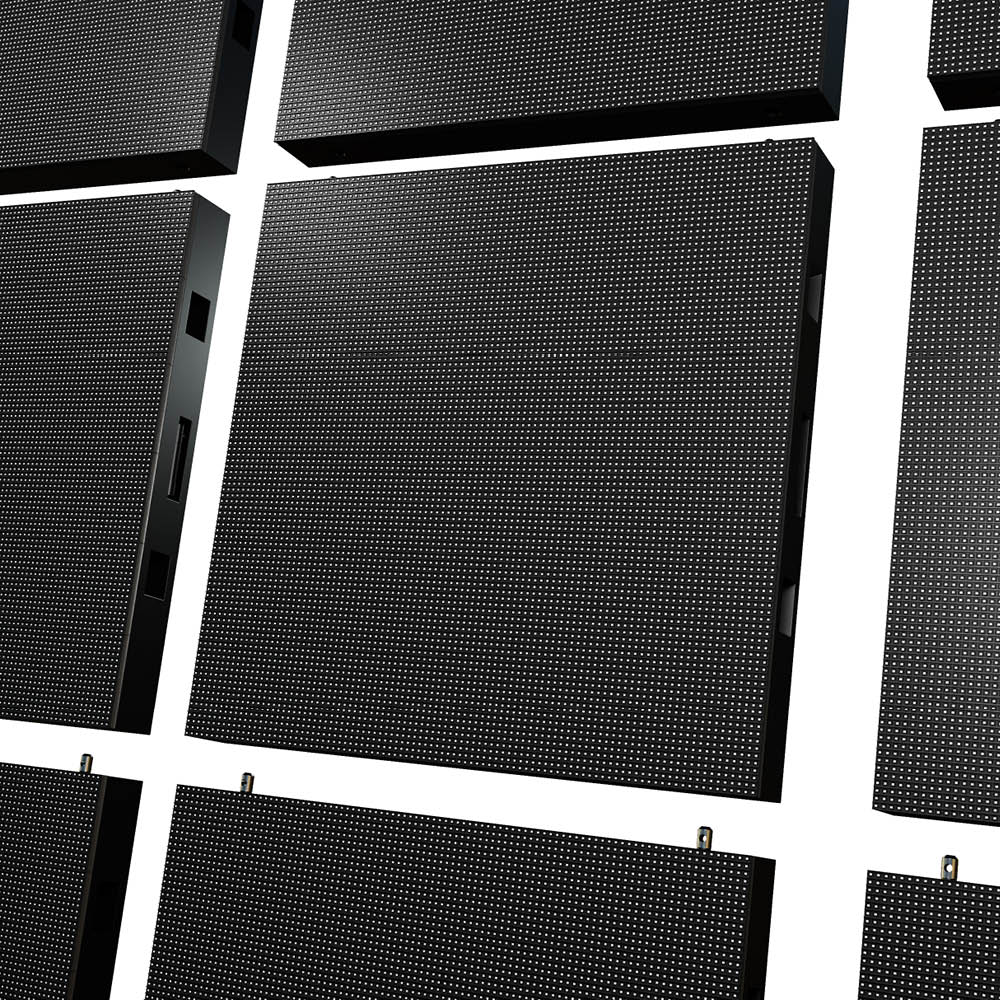

  • Large-Scale Design: The 960mm x 960mm cabinet facilitates quicker installation and reduces the number of seams for improved visual consistency in large displays.
  • Construction Options: Choose between steel (cost-effective) and aluminum (corrosion-resistant, lightweight) cabinets to meet specific project requirements and environmental considerations.
  • High Brightness and Clarity: Offers a range of pixel pitches (P4 to P16) and brightness levels (up to 10,000 nits) to ensure excellent visibility in various outdoor lighting conditions.
  • Durable and Weather-Resistant: Designed for outdoor use with IP65 rating (upgradable to IP67), providing protection against the elements and ensuring reliable performance.
4mm 4HB 5mm 5HB 6mm 6HB 6.67mm 6.67HB 8mm 8HB 10mm 10HB 16mm 16HB

Speak to us about this product

For more information about this product or any Atenti Global products please speak to us.

Module

  • Parameter
  • Specification
  • Pixel Pitch (mm)
  • 5mm
  • LED type
  • 1R1G1B
  • Packet type
  • 1921
  • LED Package Technology
  • SMD
  • PCB Layers
  • 4
  • Bonding
  • Gold
  • Pixel density (m2)
  • 40000
  • Module Resolution
  • 64 x 64
  • Module size (Wmm x Hmm)
  • 320 x 320

Cabinet

  • Parameter
  • Specification

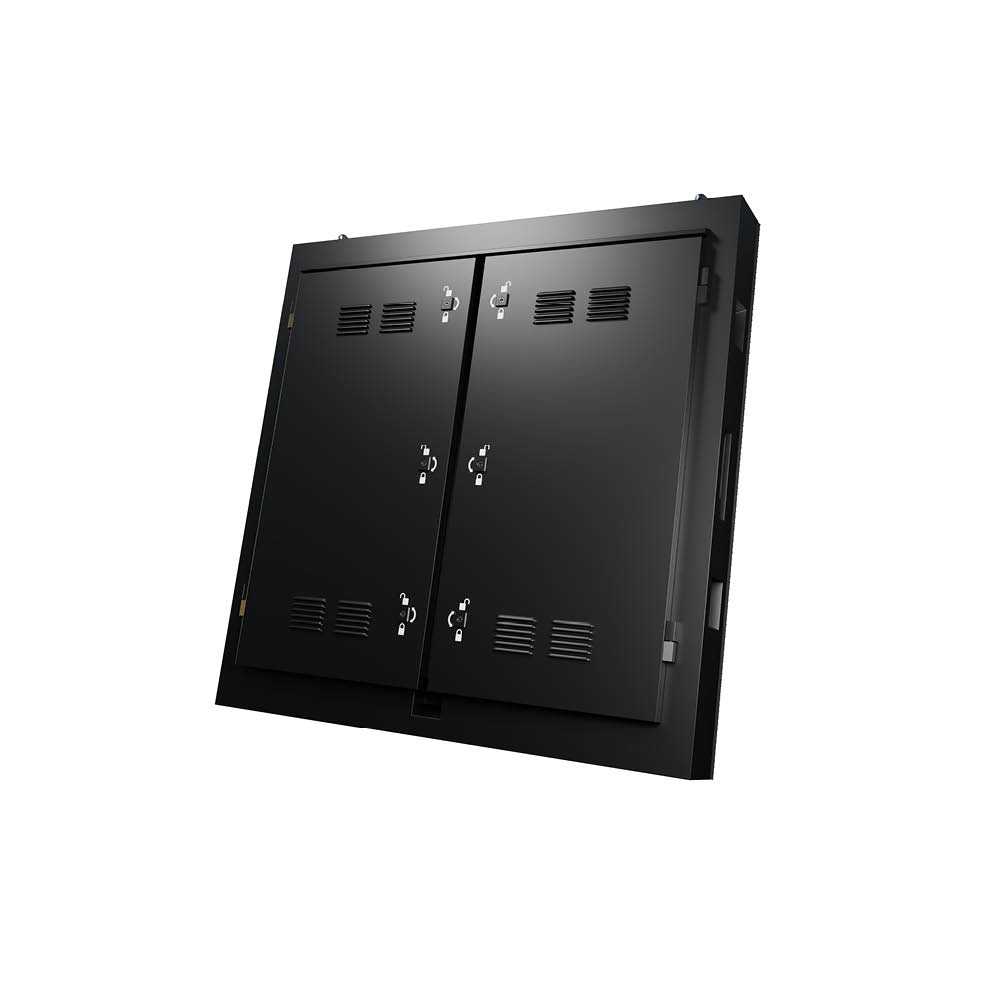

  • Cabinet Materials
  • Steel
  • Cabinet Dimensions (mm)
  • 960 x 960
  • Cabinet Resolution
  • 192 x 192
  • Cabinet Weight (Kg)
  • 50
  • Service Access
  • Both
  • IP Rating
  • 65

Operation & certification

  • Parameter
  • Specification
  • Max power
  • 650
  • AVE power
  • 230
  • Heat dissipation max
  • 2041
  • Heat dissipation AVE
  • 722
  • Power supply
  • AC 86-264V
  • Operating temp/humidity
  • -20°C - + 55°C / 10%-90%RH
  • Storage temp/humidity
  • -40°C - + 60°C / 10%-90%RH
  • Lifetime (hours)
  • 100000
  • Certifications
  • CE, ETL, BIS, ROHS, ISO9001:2015


  • Parameter
  • Specification
  • Brightness
  • 6000
  • Contrast ratio
  • 5000:1
  • Bit depth
  • 14
  • Viewing angle
  • 160 x 160

Device drivers

  • Parameter
  • Specification
  • IC controller
  • ICN2153
  • Drive method
  • 1/8
  • Refresh rate
  • 3840
  • Supported frame rate
  • 50-60
DOOH (billboard, digital signage)

Maximise impact with high-visibility LED billboards, digital signage, and stadium displays, delivering dynamic advertising and public information.

Stadium (scoreboard, perimeter)

Deliver thrilling experiences with high-impact LED scoreboards, perimeter displays, and spectaculars, enhancing fan engagement and event atmosphere.

House of Worship (billboard)

Communicate effectively with LED billboards and hymn boards, delivering clear messages and enhancing worship experiences with visual clarity.
