Blox

Blox

4.2HB to 16mm pixel pitches

Outdoor Variable pitch

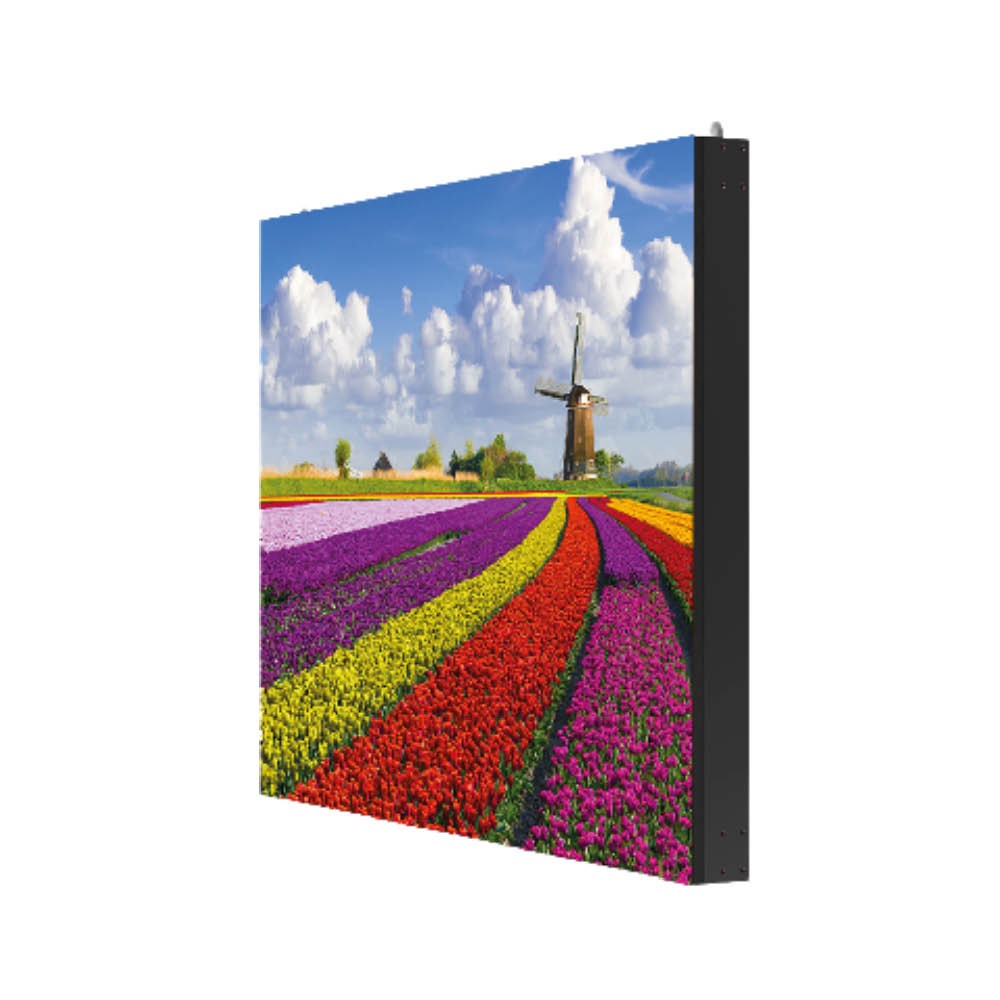

The Atenti Global Blox Series is a robust and versatile outdoor LED display solution, designed for large-scale installations requiring modularity and durability. Featuring cabinet dimensions of 960mm x 960mm and 1280mm x 960mm (with other configurations available), this series offers exceptional flexibility in creating various display sizes. Engineered for demanding outdoor environments, the Blox Series boasts a high IP rating and a wide temperature range, ensuring reliable performance in any condition. With its focus on modularity, ease of installation, and high brightness capabilities, the Blox Series is an ideal choice for impactful outdoor displays.

  • Modular and Configurable: Offers cabinet dimensions of 960mm x 960mm and 1280mm x 960mm, with the flexibility to create various display configurations.
  • High Brightness and Wide Pixel Pitch Range: Provides pixel pitch options from P4 to P60 and high brightness options up to 10,000 nits, ensuring visibility and clarity in outdoor settings.
  • Durable and Weatherproof: Features an IP67 rating for both front and back, an aluminum construction, and a wide temperature range of -20°C to +60°C for reliable outdoor performance.

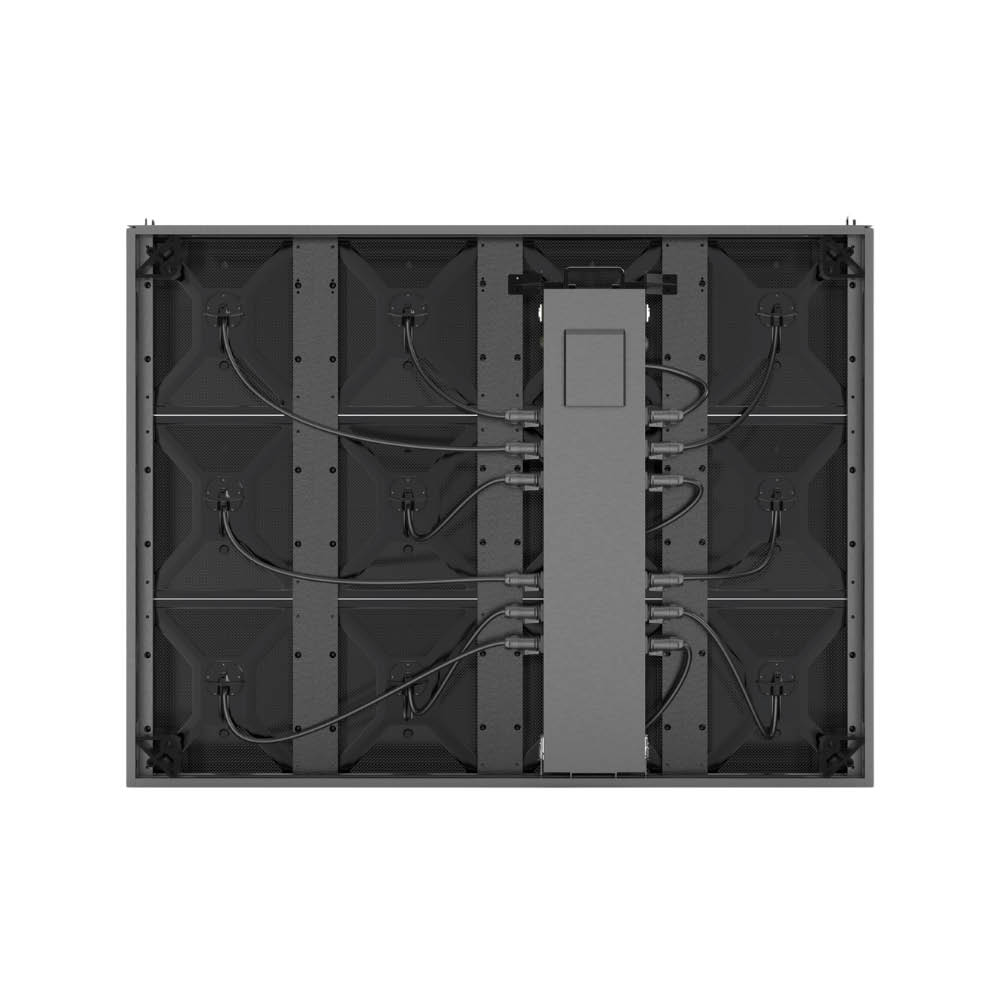

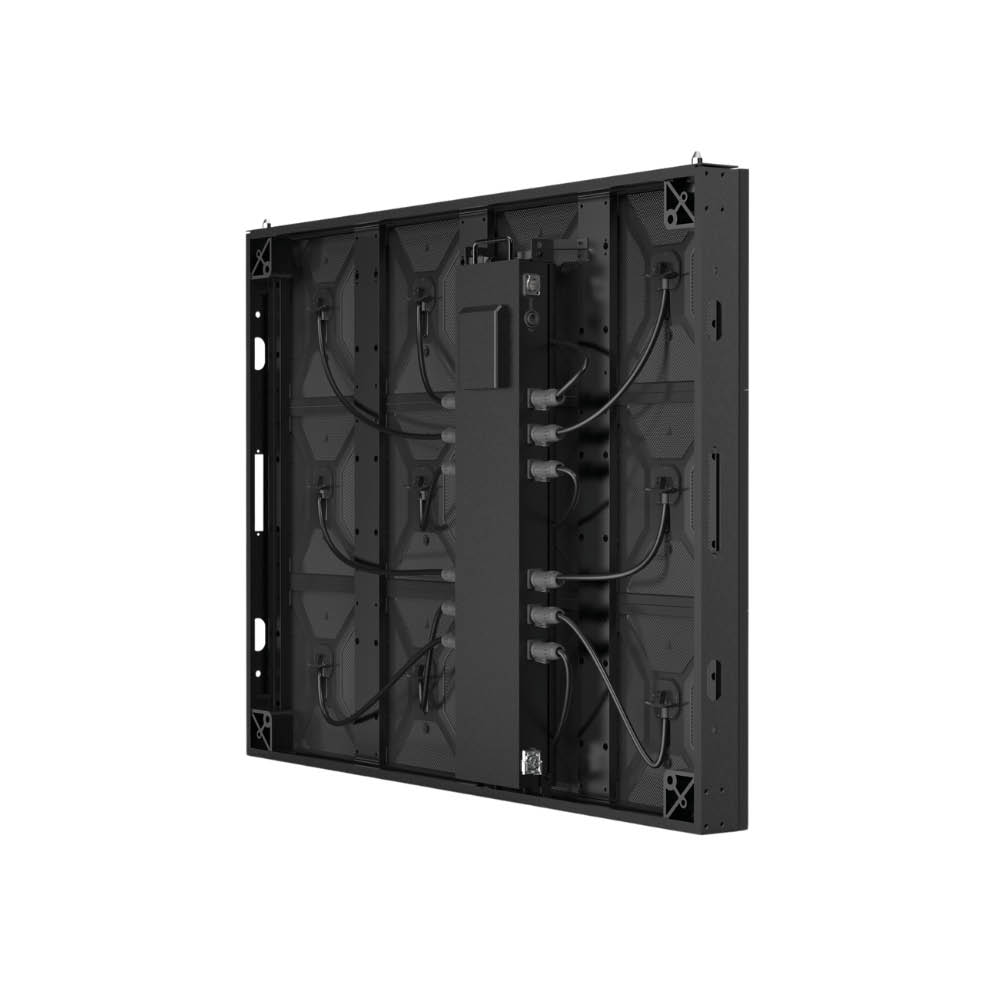

  • Efficient Installation and Maintenance: Designed with a modular system for easy front and rear access, integrated power and data cables, and energy-saving features for quick setup and reduced operational costs.
4.2HB 4.2mm 5HB 5mm 6.4HB 6.4mm 8HB 8mm 10HB 10mm 16mm

Speak to us about this product

For more information about this product or any Atenti Global products please speak to us.

Module

  • Parameter
  • Specification
  • Pixel Pitch (mm)
  • 4.2mm
  • LED type
  • 1R1G1B
  • Packet type
  • 1515
  • LED Package Technology
  • SMD
  • PCB Layers
  • 4
  • Bonding
  • Gold
  • Pixel density (m2)
  • 54607
  • Module Resolution
  • 76 x76
  • Module size (Wmm x Hmm)
  • 320 x 320

Cabinet

  • Parameter
  • Specification
  • Cabinet Materials
  • Aluminium
  • Cabinet Dimensions (mm)
  • 960 x 960 | 1280 x 960
  • Cabinet Resolution
  • 228 x 228 | 304 x 228
  • Cabinet Weight (Kg)
  • 30
  • Service Access
  • Both
  • IP Rating
  • 67

Operation & certification

  • Parameter
  • Specification
  • Max power
  • 700
  • AVE power
  • 225
  • Heat dissipation max
  • 2198
  • Heat dissipation AVE
  • 707
  • Power supply
  • AC 86-264V
  • Operating temp/humidity
  • -20°C - + 55°C / 10%-90%RH
  • Storage temp/humidity
  • -40°C - + 60°C / 10%-90%RH
  • Lifetime (hours)
  • 100000
  • Certifications
  • CE, ETL, BIS, ROHS, ISO9001:2015


  • Parameter
  • Specification
  • Brightness
  • 5500
  • Contrast ratio
  • 5000:1
  • Bit depth
  • 14
  • Viewing angle
  • 160 x 160

Device drivers

  • Parameter
  • Specification
  • IC controller
  • ICN 2153
  • Drive method
  • 1/8
  • Refresh rate
  • 3840
  • Supported frame rate
  • 50-60
