V-Flex

V-Flex

1.5625mm to 4mm pixel pitches

Indoor Variable pitch

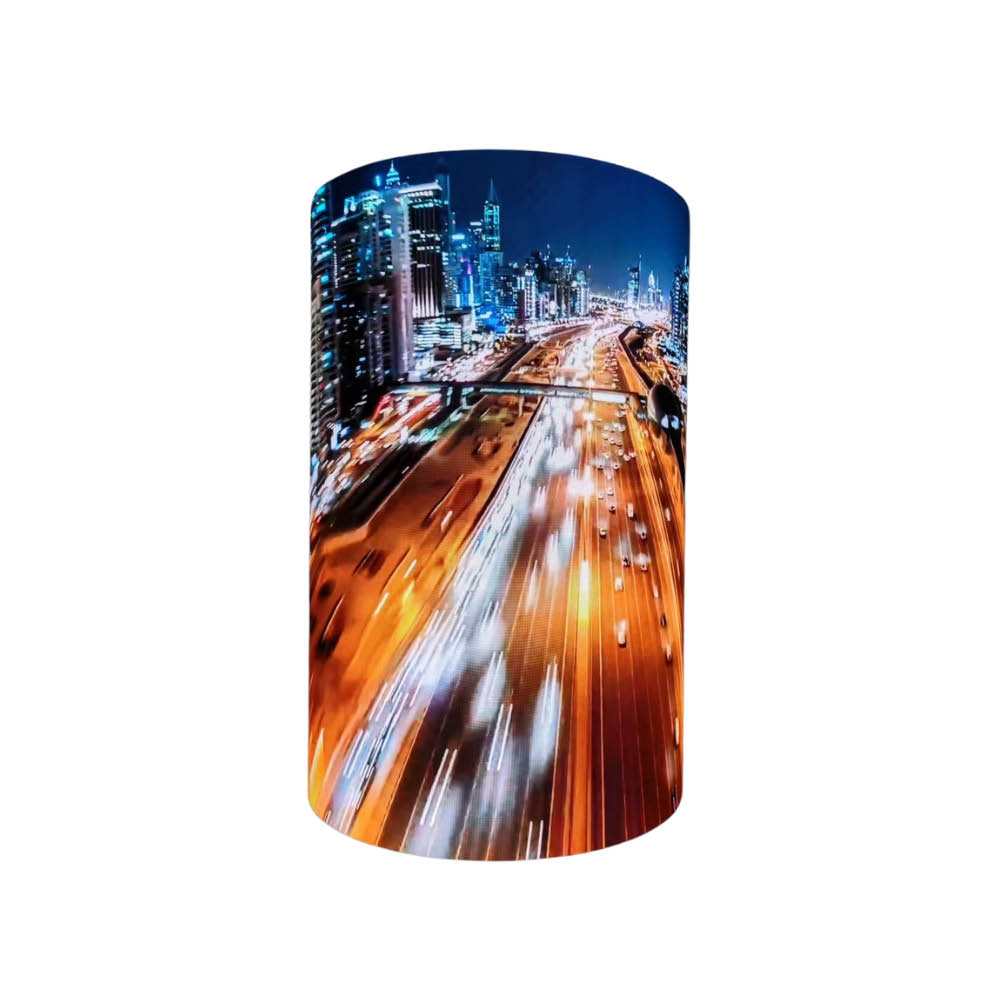

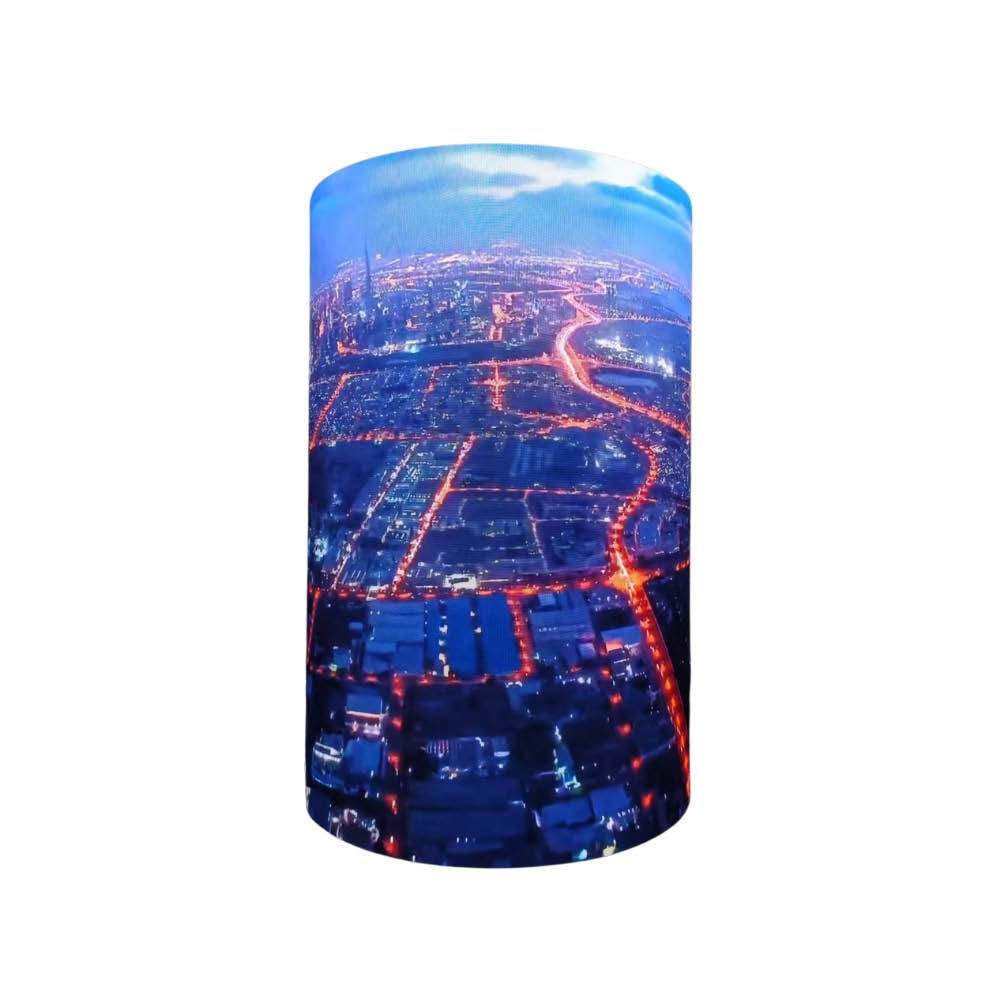

The Atenti Global V-Flex Series offers unparalleled design freedom with its bespoke indoor flexible LED modules. This series is engineered to create seamless installations in curved or irregular spaces, providing tailored solutions for unique architectural designs. Unlike pre-defined displays, the V-Flex Series is custom-made to fit specific diameters or angles, ensuring a perfect integration into any environment. Ideal for retail spaces and creative installations, the V-Flex Series delivers exceptional visual impact with its flexible form factor and high image quality.

  • Bespoke Flexible Design: Creates custom displays tailored to specific diameters or angles, allowing for seamless integration into curved or irregular spaces.
  • Seamless Installation: Engineered to fit pre-existing or new formats, ensuring a seamless finish and eliminating the need for compromises in design.
  • Modular Versatility: Offers flexibility in display size, as long as it adheres to the module parameters of 240mm wide by 120mm high.
  • Wide Range of Pixel Pitch Options: Available in various pixel pitches (P1.56 to P4) with the option for GOB application, catering to diverse visual requirements and providing added protection.
1.5625mm 1.875mm 2.5mm 3mm 4mm

Speak to us about this product

For more information about this product or any Atenti Global products please speak to us.

Module

  • Parameter
  • Specification
  • Pixel Pitch (mm)
  • 1.5625mm
  • LED type
  • 1R1G1B
  • Packet type
  • 1010
  • LED Package Technology
  • SMD
  • PCB Layers
  • 4
  • Bonding
  • Copper
  • Pixel density (m2)
  • 409600
  • Module Resolution
  • 152 x 76
  • Module size (Wmm x Hmm)
  • 240 x 120

Cabinet

  • Parameter
  • Specification
  • Cabinet Materials
  • Steel
  • Service Access
  • Front
  • IP Rating
  • IP31

Operation & certification

  • Parameter
  • Specification
  • Max power
  • 450
  • AVE power
  • 150
  • Heat dissipation max
  • 1413
  • Heat dissipation AVE
  • 471
  • Power supply
  • AC 86-264V
  • Operating temp/humidity
  • 0°C - + 55°C / 10%-90%RH
  • Storage temp/humidity
  • 0°C - + 60°C / 10%-90%RH
  • Lifetime (hours)
  • 100000
  • Certifications
  • CE, ETL, BIS, ROHS, ISO9001:2015


  • Parameter
  • Specification
  • Brightness
  • 650
  • Contrast ratio
  • 8000:1
  • Bit depth
  • 14
  • Viewing angle
  • 160 x 160

Device drivers

  • Parameter
  • Specification
  • IC controller
  • ICN2065
  • Drive method
  • 1/48
  • Refresh rate
  • 3840
  • Supported frame rate
  • 50-60
Creative

Unleash design potential with flexible LED solutions for ceilings, floors, and shaped modules, enabling innovative and captivating visual installations.

Retail

Drive sales with captivating LED displays for counter displays, window displays, and menu boards, even enitre walls, attracting customers and enhancing brand visibility.
