Horizon

Horizon

1.95mm to 3.91HB pixel pitches

Indoor Variable pitch

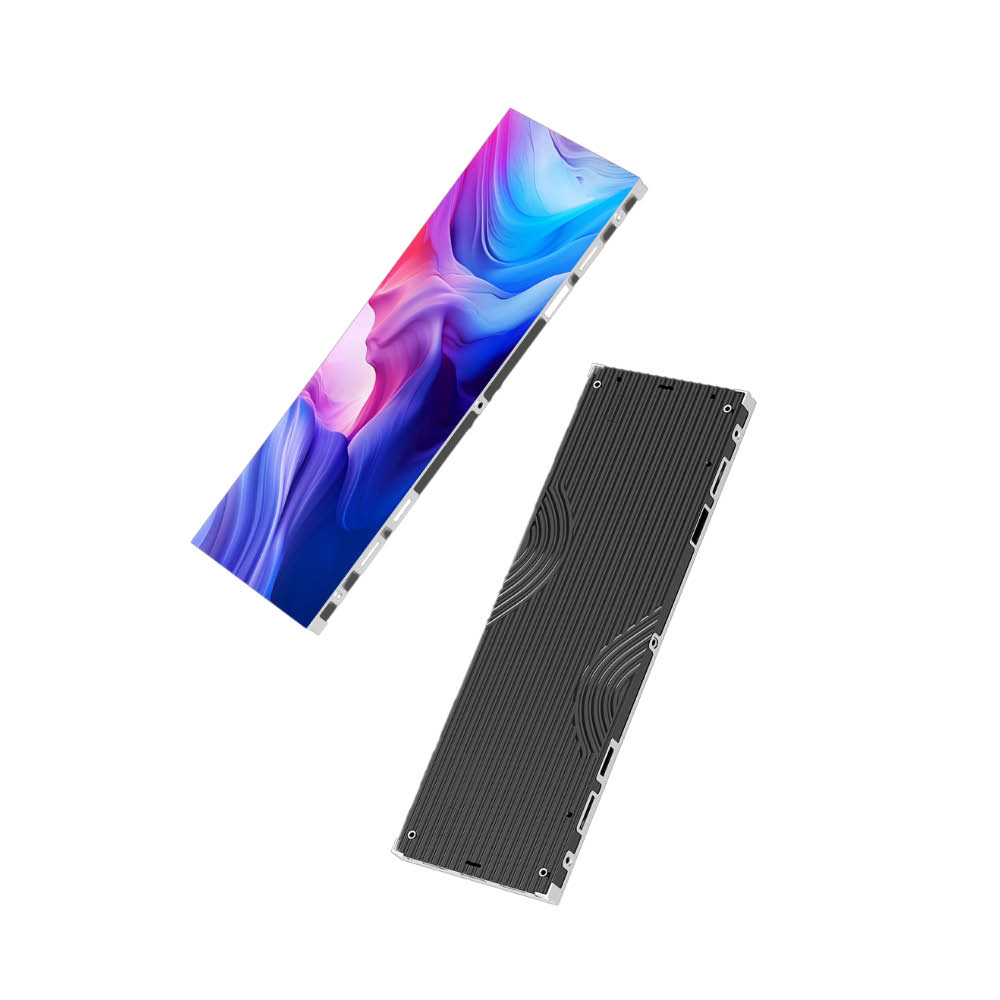

The Atenti Global Horizon Series redefines indoor LED display versatility with its precision-engineered 1000mm wide cabinet, designed for integration across a multitude of environments. This series is crafted to meet the demands of modern installations, offering exceptional adaptability for retail, airport, and office spaces. The Horizon Series' modular design ensures effortless setup and maintenance, reducing installation time and costs. Engineered for optimal visual performance, it delivers vibrant imagery and reliable operation, enhancing any indoor setting. Available in multiple width configurations, including 750mm and 500mm, the Horizon Series provides a flexible solution for diverse display needs.

  • Modular Design: The 1000mm width, along with 750mm and 500mm options, aligns with standard architectural dimensions, simplifying installation and enabling versatile display configurations.
  • Enhanced Installation: Engineered for modern fixings, the Horizon series is designed for quick and efficient installation, reducing on-site setup time and costs.
  • Versatile Application: Ideal for retail, airport, and office spaces, the Horizon Series delivers exceptional visual performance in various indoor environments.
  • Robust Construction: Die-cast construction ensures durability and structural integrity, guaranteeing long-term reliability and performance.
1.95mm 1.95HB 2.5mm 2.5HB 2.97mm 2.97HB 2.6mm 2.6HB 3.91mm 3.91HB

Speak to us about this product

For more information about this product or any Atenti Global products please speak to us.

Module

  • Parameter
  • Specification
  • Pixel Pitch (mm)
  • 1.95mm
  • LED type
  • 1R1G1B
  • Packet type
  • 1515
  • LED Package Technology
  • SMD
  • PCB Layers
  • 4
  • Bonding
  • Copper
  • Pixel density (m2)
  • 262144
  • Module Resolution
  • 128 x 128
  • Module size (Wmm x Hmm)
  • 250 x 250

Cabinet

  • Parameter
  • Specification
  • Cabinet Materials
  • Aluminium
  • Cabinet Dimensions (mm)
  • 1000 x 250 / 750 x 250 / 500 x 250 x 33
  • Cabinet Resolution
  • 512 x 128 / 384 x 128 / 256 x 128
  • Cabinet Weight (Kg)
  • 7
  • Service Access
  • Front
  • IP Rating
  • 31

Operation & certification

  • Parameter
  • Specification
  • Max power
  • 450
  • AVE power
  • 150
  • Heat dissipation max
  • 1413
  • Heat dissipation AVE
  • 471
  • Power supply
  • AC 86-264V
  • Operating temp/humidity
  • 0°C - + 55°C / 10%-90%RH
  • Storage temp/humidity
  • 0°C - + 60°C / 10%-90%RH
  • Lifetime (hours)
  • 100000
  • Certifications
  • CE, ETL, BIS, ROHS, ISO9001:2015


  • Parameter
  • Specification
  • Brightness
  • 850
  • Contrast ratio
  • 8000:1
  • Bit depth
  • 14 bit
  • Viewing angle
  • 160 x 160

Device drivers

  • Parameter
  • Specification
  • IC controller
  • ICN1065
  • Drive method
  • 1/32
  • Refresh rate
  • 3840
  • Supported frame rate
  • 50-60
Corporate (lobby)

Elevate corporate environments with impactful LED displays in boardrooms, lobbies, and training rooms, fostering communication and enhancing brand presence.

Retail

Drive sales with captivating LED displays for counter displays, window displays, and menu boards, even enitre walls, attracting customers and enhancing brand visibility.

Hospitality (lobby)

Create memorable guest experiences with vibrant LED displays in lobbies, menu boards, and spectacular installations, enhancing ambience and customer engagement.
