RXo

2.97mm to 5.95mm pixel pitches

Outdoor Variable pitch

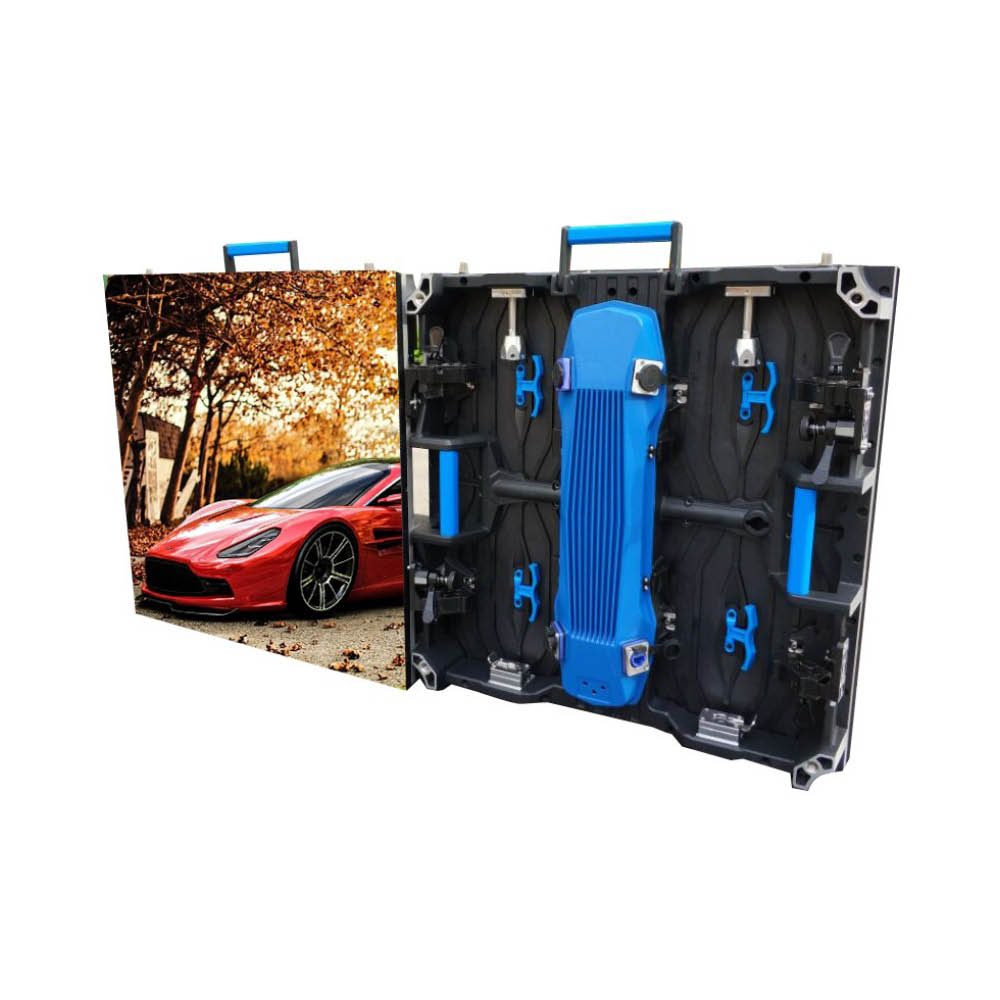

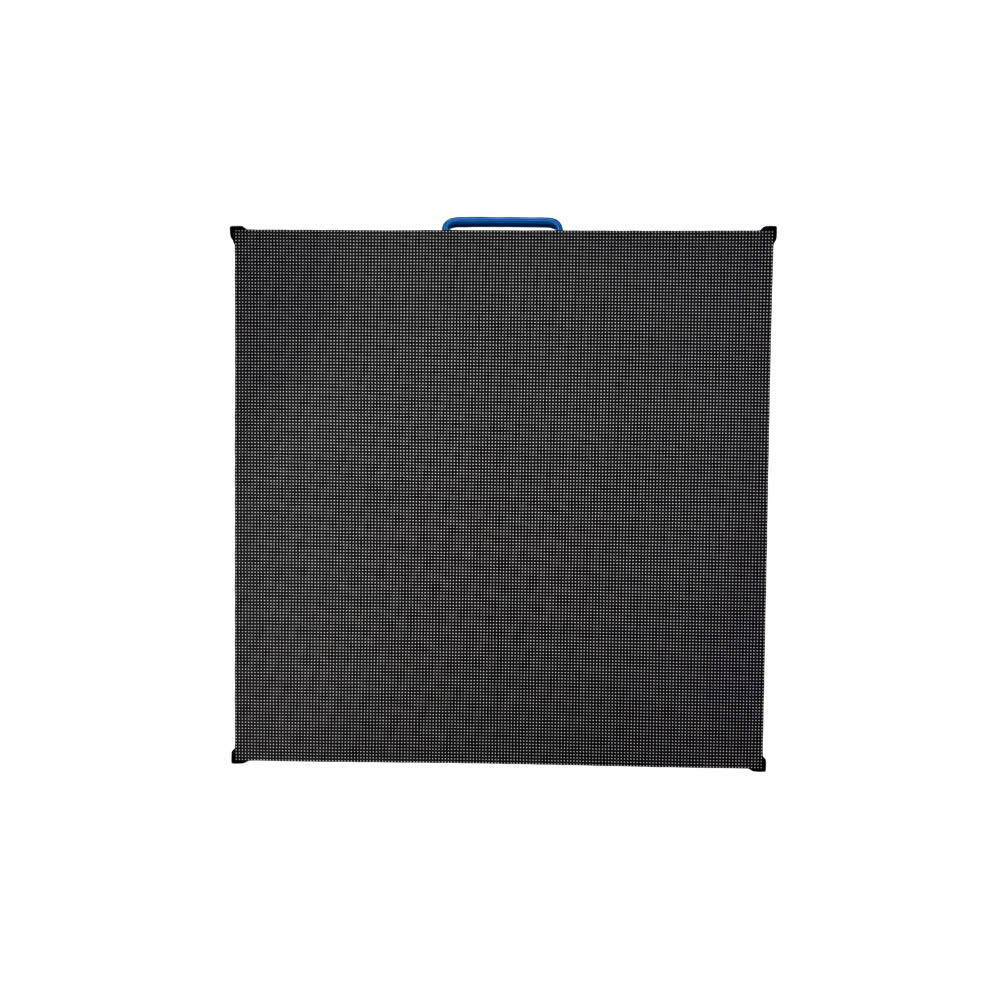

1.95mm to 4.8mm - The outdoor counterpart to the RXi - fleet-friendly economics, IP-rated build and the same fast set-up and teardown for outdoor stages, public events, festivals and brand activations. Designed for rental companies who need every truck-load to earn its keep. Up to 5,500nits.

  • Elite Rental Design: Specifically designed for the outdoor rental and staging market.
  • Fast Setup and Dismantling: Engineered for quick and efficient assembly and disassembly, crucial for outdoor events with tight schedules.
  • Durable and Stable Construction: Cabinets built for outdoor durability and stability, ensuring reliable performance in various weather conditions.
  • Creative Flexibility: Faceted cabinet options allow for the creation of curved displays, expanding design possibilities for outdoor productions.
2.97mm 3.91mm 4.81mm 5.95mm
Download brochure

Speak to us about this product

For more information about this product or any Atenti Global products please speak to us.

Speak to us

Module

  • Parameter
  • Specification
  • Pixel Pitch (mm)
  • 2.97mm
  • LED type
  • 1R1G1B
  • Packet type
  • 2020
  • LED Package Technology
  • SMD
  • PCB Layers
  • 4
  • Bonding
  • Copper
  • Pixel density (m2)
  • 112896
  • Module Resolution
  • 84 x 84
  • Module size (Wmm x Hmm)
  • 250 x 250

Cabinet

  • Parameter
  • Specification
  • Cabinet Materials
  • Aluminium
  • Cabinet Dimensions (mm)
  • 500 x 500 x 90
  • Cabinet Resolution
  • 168 x 168
  • Cabinet Weight (Kg)
  • 8
  • Service Access
  • Both
  • IP Rating
  • 65

Operation & certification

  • Parameter
  • Specification
  • Max power
  • 750
  • AVE power
  • 250
  • Heat dissipation max
  • 2355
  • Heat dissipation AVE
  • 785
  • Power supply
  • AC 86-264V
  • Operating temp/humidity
  • '-20°C - + 60°C / 10%-90%RH
  • Storage temp/humidity
  • '-20°C - + 60°C / 10%-90%RH
  • Lifetime (hours)
  • 100000
  • Certifications
  • CE, UL, BIS, ROHS, ISO9001:2015


  • Parameter
  • Specification
  • Brightness
  • 5000
  • Contrast ratio
  • 5000:1
  • Bit depth
  • 14
  • Viewing angle
  • 160 x 160

Device drivers

  • Parameter
  • Specification
  • IC controller
  • ICN2153
  • Drive method
  • '1/16
  • Refresh rate
  • 3840
  • Supported frame rate
  • 50-60
